Software Defined Radio,USRP-LW B210
Product Overview
The USRP B210 provides a fully integrated, single-board, Universal Software Radio Peripheral platform with continuous frequency coverage from 70 MHz – 6 GHz. Designed for low-cost experimentation, it combines the AD9361 RFIC direct-conversion transceiver providing up to 56MHz of real-time bandwidth, an open and reprogrammable Spartan6 FPGA, and fast SuperSpeed USB 3.0 connectivity with convenient bus-power.
Main Features:
1. Highly integrated, two transceivers with RF range from 70 MHz to 6 GHz
2. Support for high speed USB 3.0 connectivity
3. Open source UHD supports multiple frameworks
4. User-programmable Spartan 6 XC6SLX150FPGA, a fully integrated mixed-signal baseband direct conversion transceiver that provides bandwidth up to 56MHz

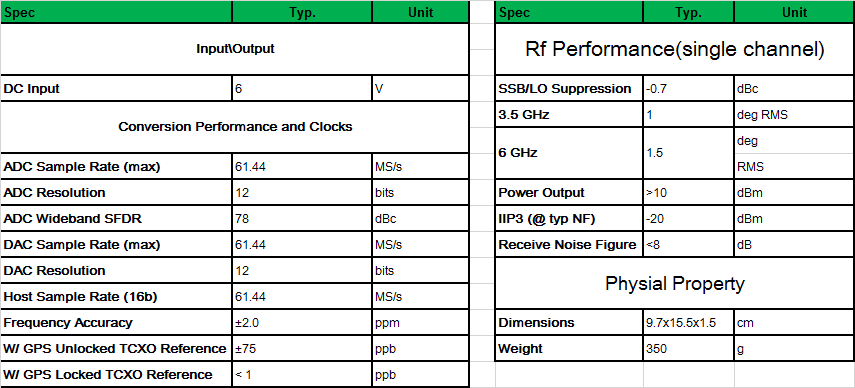

Technical Parameters:
Low cost software radio:
The USRP-LW B210 enables a wide range of applications, including broadcast, mobile, GPS, WiFi, ISMFM and TV signals. Users can use GNU Radio to quickly develop some radios or participate in some open source software radio projects. UHD-based support on different USRP devices allows users to reuse existing designs. Both open source applications such as HDSDR and OpenBTS support multiple USRP-LW devices.
Included in This Equipment:
1. USRP-LW B210
2. USB 3.0 cable
3. Power Supply
