USRP Daughterboards UBX-LW 160MHZ
The UBX 160 daughterboard is a full-duplex wideband transceiver that covers frequencies from 10 MHz to 6 GHz with up to 160 MHz* of instantaneous bandwidth. Coherent and phase-aligned operation across multiple UBX daughterboards enables users to explore MIMO and direction finding applications. The UBX 160 daughterboard works interchangeably with other USRP daughterboards and is compatible with the USRP X Series devices.
Main Features:
1. Frequency coverage: 10 MHz - 6 GHz
2. Bandwidth includes: 160 MHz
3. Independently operating full-duplex TX and RX frequencies
4. Support phase synchronization or calibration
Function Description:
The UBX-LW is a full-duplex transceiver that provides high-performance RF covering most frequency segments for coherent phase alignment in multi-channel MIMO and direction finding applications. The tuning range of bandwidth makes the UBX-LW an ideal application that covers all of the most common frequency bands, spanning high frequency, very high frequency, cellular, radar, and WIFI, and can be used for monitoring the entire band of interest. UBX-LW works alternately with existing USRP-LW daughter boards for seamless integration into your existing applications.
Please do not hesitate to contact me if you need any further information.
Whatsapp/skype/Wechat: +8618062514745 Web:https://www.luowave.com/en/
Test of UBX-LW 160M
Test environment description: R&S company equipment is used for testing, the model is ZVL. The test equipments areUSRP-LW X310 and UBX-LW 160M. The two devices are connected by radio frequency cable directly. Test environment diagram:
Open-loop transmitter test connection diagram:
Closed-loop Spontaneous Receiving Test Connection Diagram:
Open-loop and closed-loop test data based on GNU RADIO COMPANION: 1. Carrier suppression and Image Reject Test: Central frequency 10MHz, baseband signal frequency 10kHz, GAIN 9dB

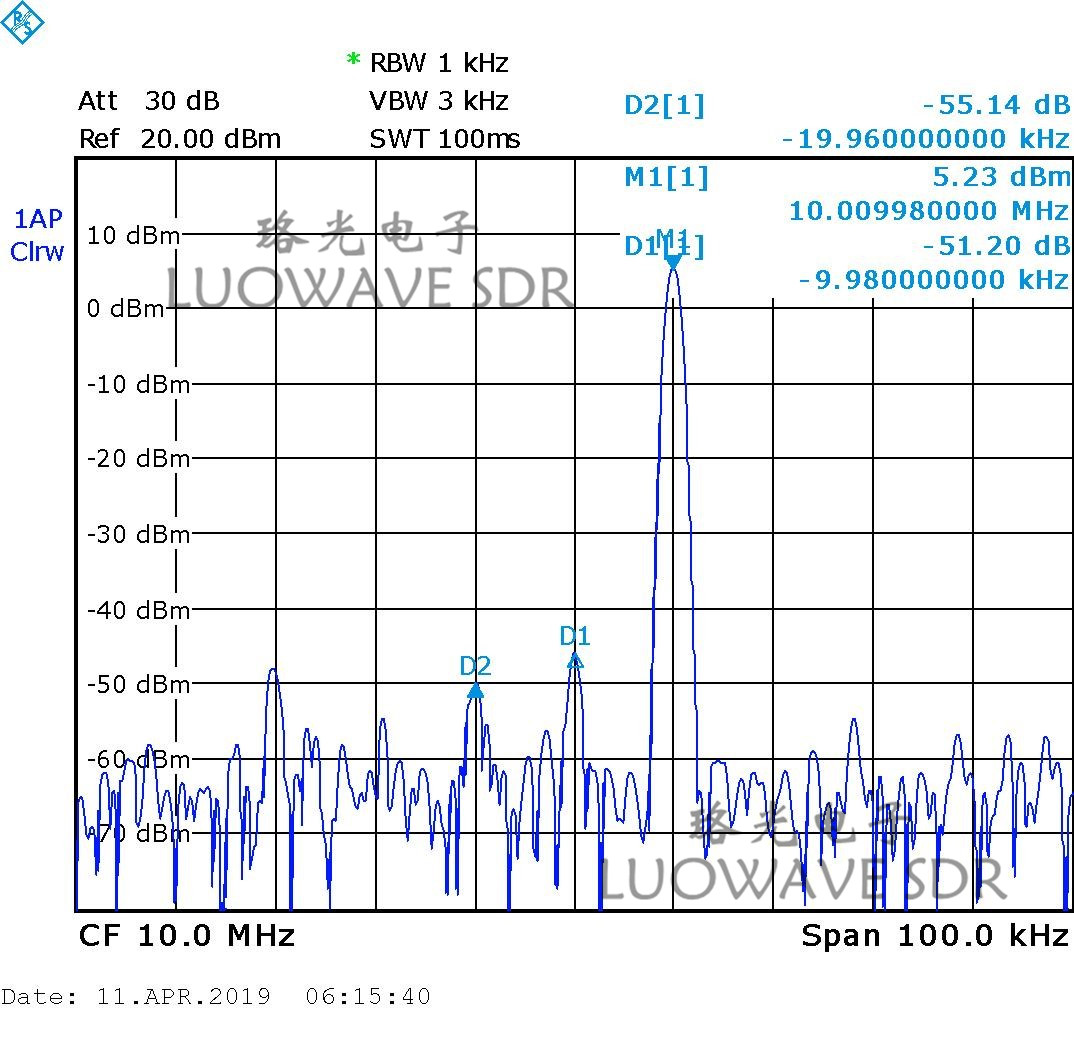

Central frequency 10MHz, Graphics output at maximum gain:
2. Carrier suppression and Image Reject Test: Central frequency 100MHz, baseband signal frequency 10kHz, GAIN 9dB
Central frequency 100MHz, Graphics output at maximum gain:

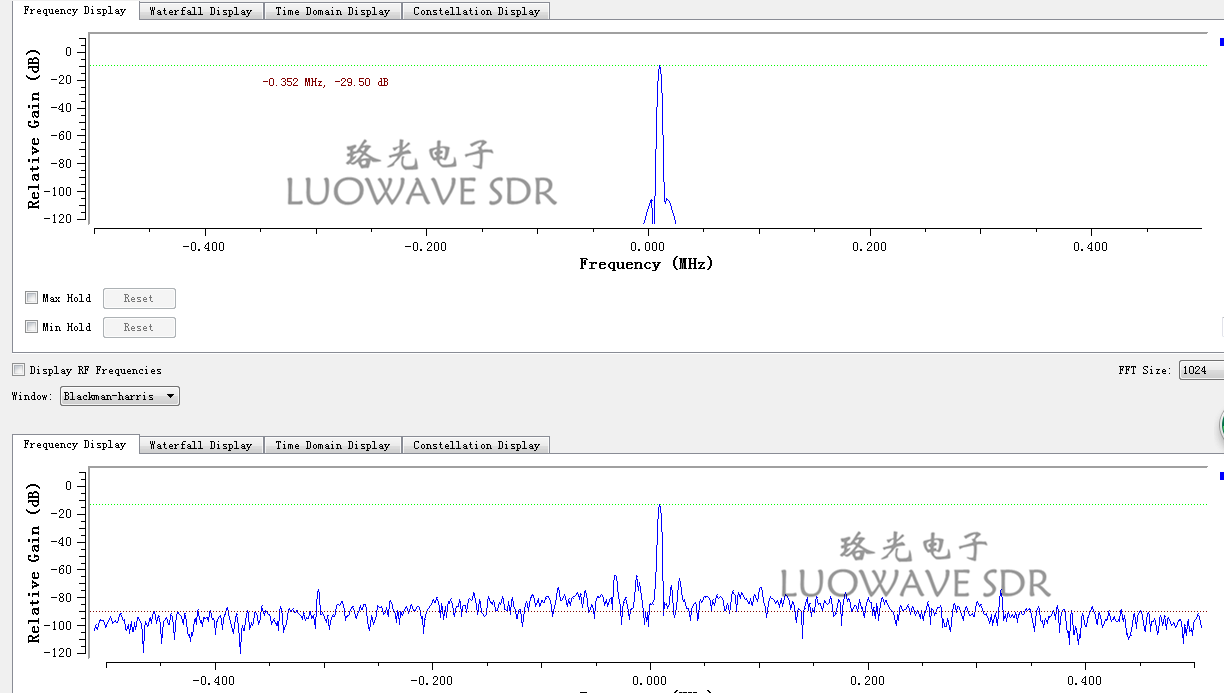

Central Frequency 100MHz, Closed Loop Transceiver Test Spectrum and Time Domain Graphics
3. Carrier suppression and Image Reject Test: Central frequency 400 MHz, baseband signal frequency 10 kHz, GAIN 9dB

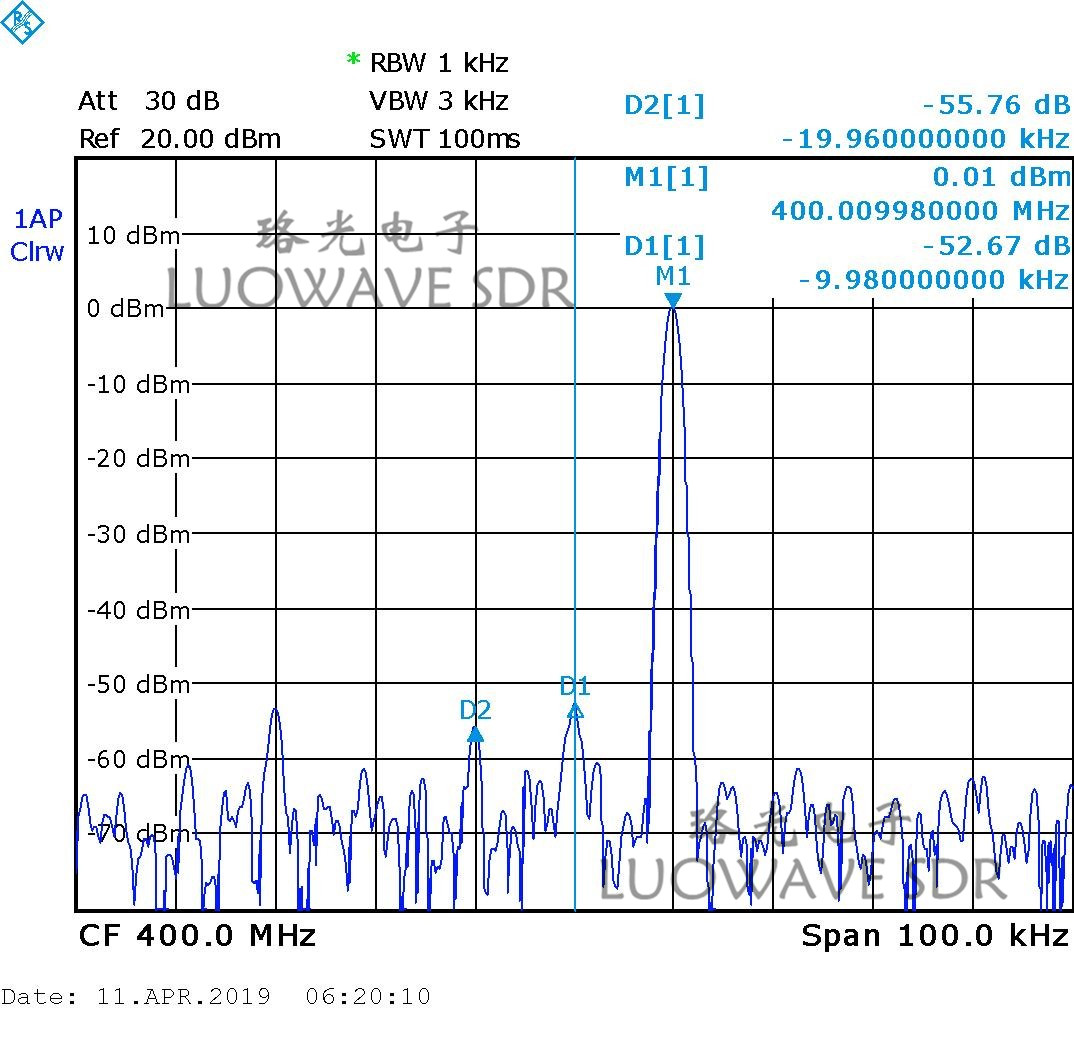

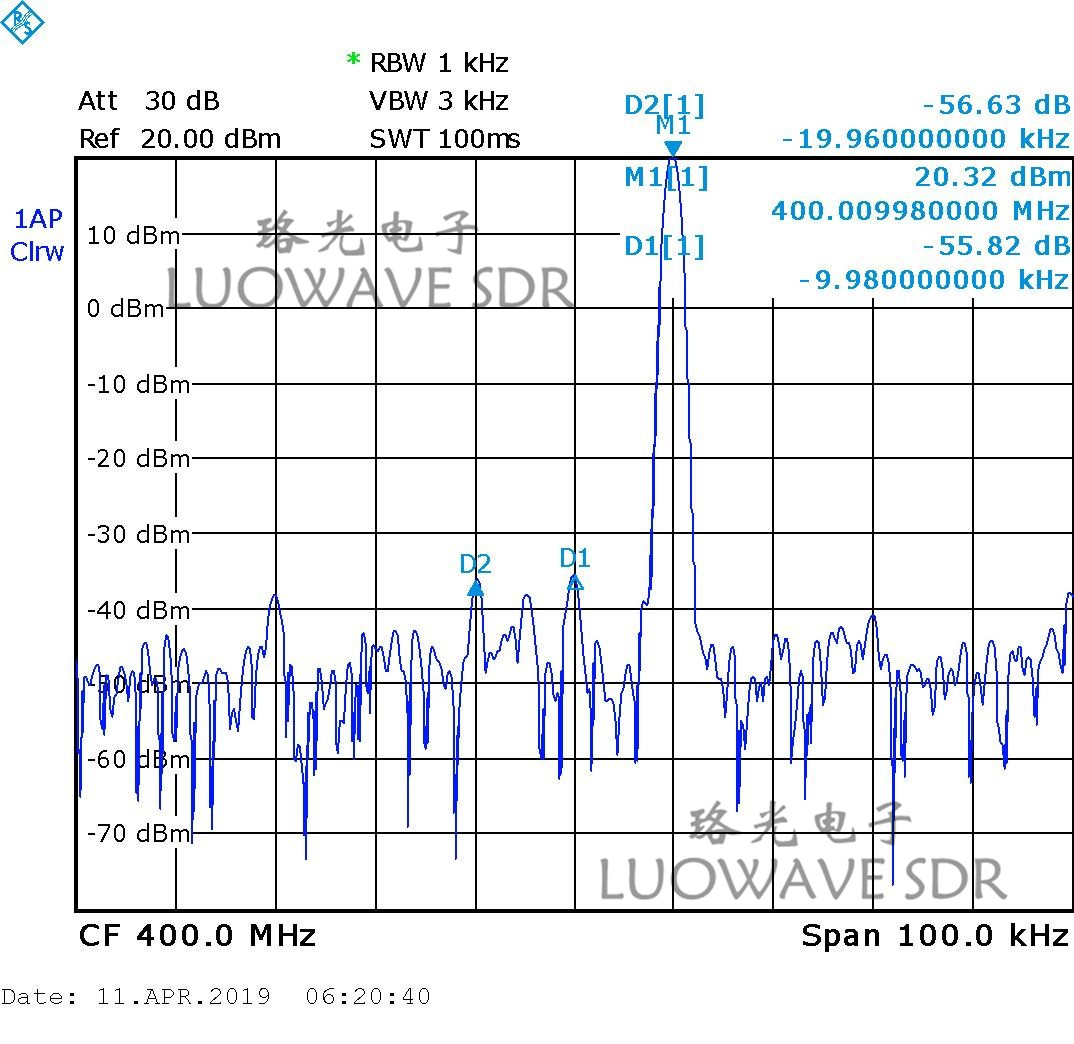

Central frequency 400 MHz, Graphics output at maximum gain:

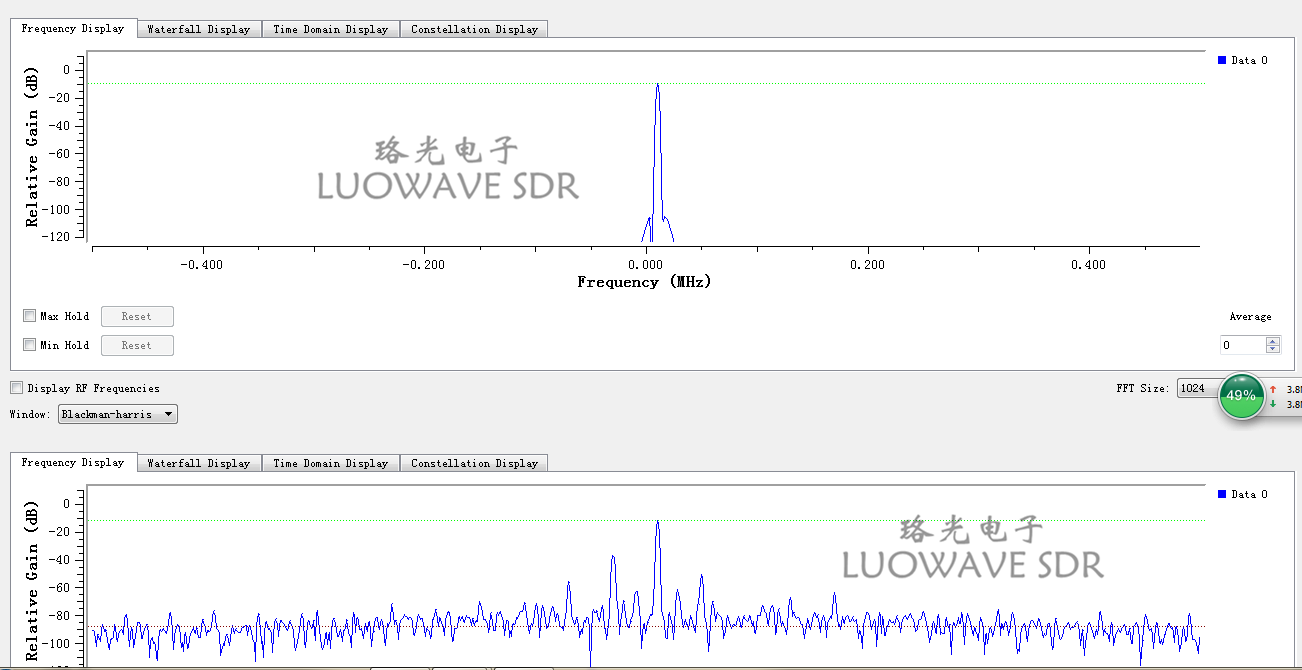

Central frequency 400 MHz, closed-loop transceiver test spectrum and time-domain graphics
4. Carrier Suppression and Mirror Suppression Test: Central frequency 800MHz, baseband signal frequency 10kHz, GAIN 9dB
Central frequency 800MHz, Graphics output at maximum gain:

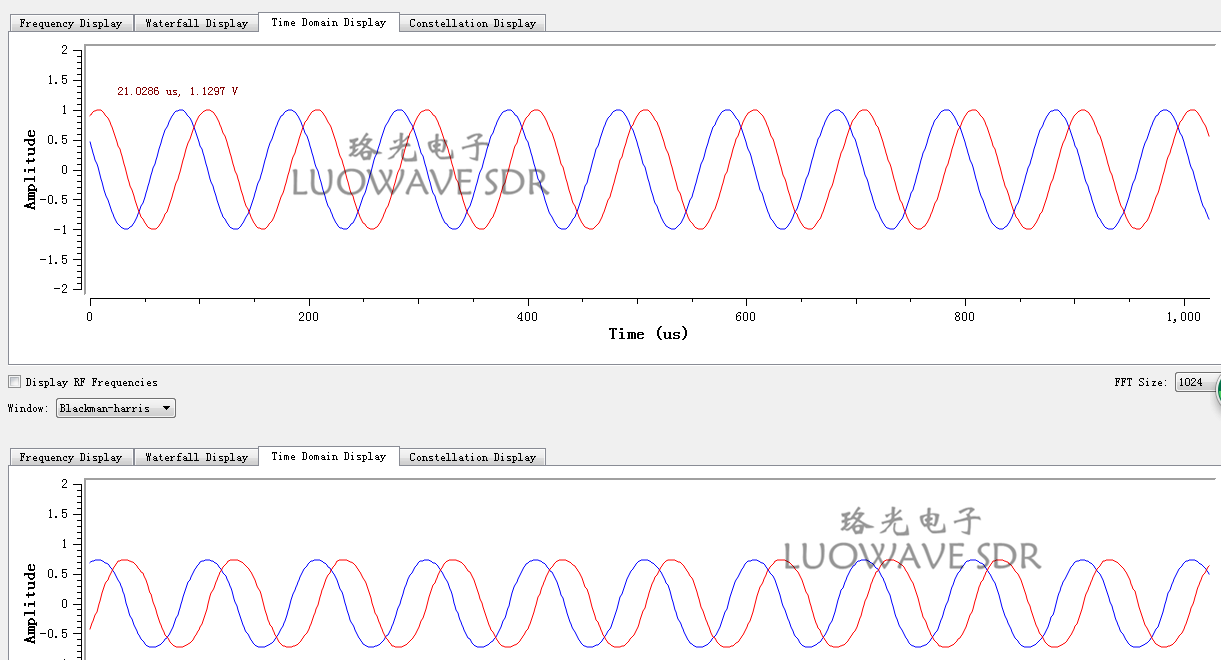

Central Frequency 800MHz, Closed-Loop Transceiver Test Spectrum and Time-Domain Graphics
5. Carrier suppression and Image Reject Test: Central frequency 2.4 GHz, baseband signal frequency 10 kHz, GAIN 9dB
Central frequency 2.4 GHz, Graphics output at maximum gain:

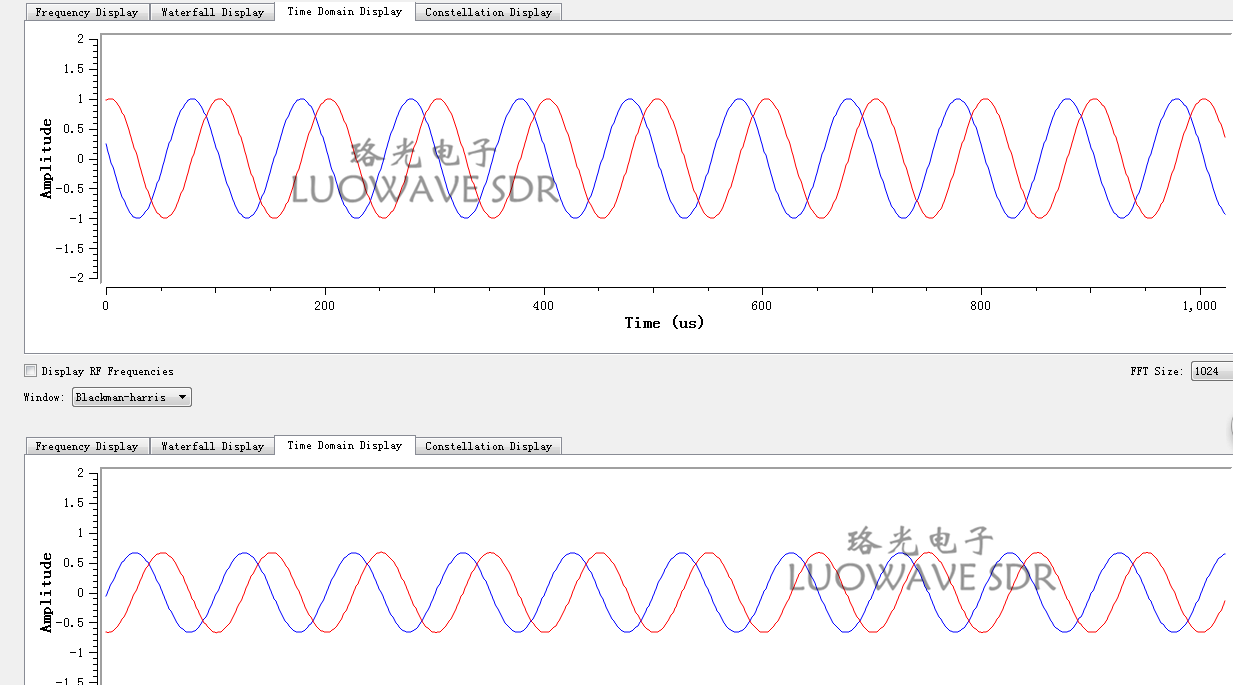

Central Frequency 2.4 GHz, Closed-Loop Transceiver Test Spectrum and Time-Domain Graphics
6. Phase noise measurement: central frequency 1 GHz
Please do not hesitate to contact me if you need any further information.
Whatsapp/skype: +8618062514745 Web:https://www.luowave.com/en/
