Independent Software Radio Equipment SDR-LW 2974-24/44

SDR-LW 2974 - 24/44 is the latest product developed by Wuhan Luowave SDR based on the classic radio equipment SDR-LW 2974. The transmit and receive frequency is increased to 24GHz / 44GHz , while inheriting all the functions and advantages of the former .

• 10MHz-24GHz / 44GHz frequency coverage
• i7 processor with Linux RTOS
• 500GB SSD,16GB RAM
• Built-in Xilinx Kintex-7 FPGA
• USRP Software Defined Software Radio
• Pre-installed all-in-one software
• Optional All-in-One Paid Software
• List of related applications

Product introduction

SDR-LW 2974 - 24/44 consists of an onboard processor, FPGA and RF front-end. This product has built-in Intel i7 processor, 500GB SSD, 16GB memory. Frequency coverage from 10 MHz- 24GHz/44 GHz, bandwidth up to 160 MHz. There are multiple optional high-speed interfaces (PCIe, Gigabit Ethernet and 10 Gigabit Ethernet ports), and a resource-rich, user-programmable Kintex-7 FPGA. Like all USRP devices, this device uses an open source, cross-platform UHD driver that supports most applications and SDR frameworks such as GNU Radio, Matlab, and LabView .

Typical application scenarios

The new Luowave millimeter wave series products can support: 5G FR2 application; Vector signal generation and analysis; Satellite communication applications; Channel measurement applications; Communication awareness integrated application.

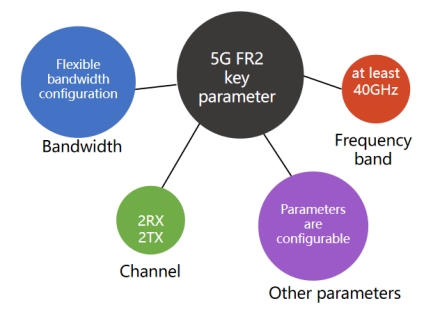

5G FR2 applications:

• frequency can cover 40GHz which is commonly used in 5G FR2
• Software-defined radio is reconfigurable
• Dual-Channel Transceiver can Simulates Simple MIMO Scenarios
• All hardware and software parameters are configurable, ideal for prototyping

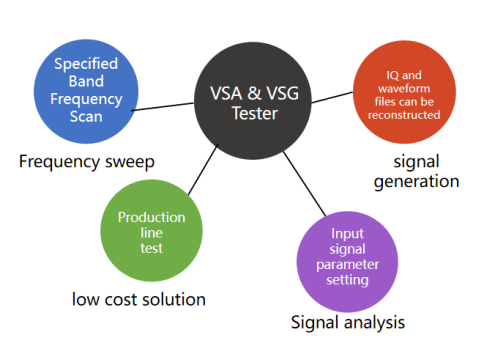

Vector signal generation and analysis:

• Custom vector modulation signals Generation
• Can analyze the quality of the transmitted signal of various transmitters
• Low cost of ownership, one set of transmitter and receiver testing are intergrated in one set of equipment

Satellite communication applications:

• Frequency band coverage: C/KU/KA
• China GW satellite constellation: 37.5-42.5GHz , can support 47.2GHz-51.4GHz in the future
• Support prototype terminal verification
• Reconfigurable FPGA can provide satellite transponder function simulation, as well as channel scenario simulation

Channel measurement application:

• Transmit and receive devices can be synchronized through GPSDO
• Flexible generation of test sequences for channel estimation
• Transceiver integrated structure can realize bidirectional channel estimation
• The IQ data from the receiver is compatible with mathematical tools such as Matlab /Python

Integrated application of communication perception:

• vehicle perception, personnel perception
• Software Radio Based OFDM Radar / Multitone Radar
• USRP transceiver channel synchronization, enabling radar transceiver function
• Indoor sensor intrusion detection function verification

Main Feature

Industrial computer

FPGA and Baseband

As the digital processing core of the SDR-LW 2974 - 24/44, the Xilinx Kintex-7 FPGA provides direct high-speed connectivity to all major components, including the RF front end, host interface, and DDR3 memory. The default FPGA provides all UHD's for digital down-conversion and digital up-conversion, fine frequency tuning and some other DSP functional blocks. Users can develop and implement their own DSP processing modules by using the abundant FPGA spare space and the development framework supported by USRP.

RF index

Power

surroundings

structure size

Accessories

SDR-LW 2974-24/44 accessories include one power cord, four omnidirectional antennas, one standard network cable, one D P to HDMI cable, one SFP module, one USB data cable, one set of standard keyboard and mouse, One monitor (choose one of LCD monitor or tablet computer).

Free pre-installed software:

Optional paid software:

LUOWAVE App Store:

"LUOWAVE App Store" is the application software platform of LUOWAVE . There are a large number of application software developed by Luowave itself and third parties on the platform, including wireless communication, radar and detection, wireless test and measurement, remote sensing and navigation, teaching platform and other fields. All the application software on the platform is developed based on the Luowave software radio platform, and, we will perform strictly testing procedure and quality control to assure the software is stable and reliable at the same time. The Luowave appstore will be continuously updated that the software on which are the newest and the most optimized one.

The majority of software radio users can search and discover the applications they need on this platform, eliminating the time and effort required to develop their own software. We welcome App any developers who would like to provide their own application software to this platform. And We will help them taking full advantage of our new hardware technology in the software developing phase.

APP Store application interface
