| Brand Name : | Luowave |
| Model Number : | USRP-LW B210 Plus |
| Price : | $2,250.00 |
The USRP-LW B210 Plus is a highly integrated, 2T2R transceivver-capable industrial-grade universal software-defined radio equipment with mhultiple frameworks via the open source USRP Hardware Driver (UHD), it has a programmable Xilinx ArtixTM 7 XC7A 200T FPGA. With the AD9361 RF front-end, the USRP-LW B210 Plus can provide a maximum real-time bandwidth of 56MHz.
GNU Radio
Matlab
UHD
Labview
Specifications
| DC Voltage Input | 6V | GPS Lock TCXO Accuracy | <1ppb |
| ADC Sampling Rate (Max) | 61.44 MSps | Single-sideband Mirroring | -40/-50dBc |
| LO Rejection(1GHz) | |||
| ADC Resolution | 12 bits | 1GHz Phase Noise | -102dBc/Hz@10KHz |
| ADC Wideband SFDR | 78dBc | 5GHz Phase Noise | -91dBc/Hz@10KHz |
| DAC Sampling Rate | 61.44 MSps | Output Power | 16dBm |
| DAC Resolution | 12 bits | IIP3 | -20dBm |
| Maximum Tansfer Rate With Host (16b) | 61.44 MSps | Noise Figure | <8.5dB |
| Local Oscillator Accuracy | ±2.0ppm | Unlock GPS TCXO Accuracy | ±75ppb |
| Processor(only for Chassis) | I7 8700 | Memory(only for Chassis) | 16G |
| Voltage(only for Chassis) | 220V | Current(only for Chassis) | 3A MAX |
| Size | 0.8kg | Weight | 17.9*12.7*4.8 cm |

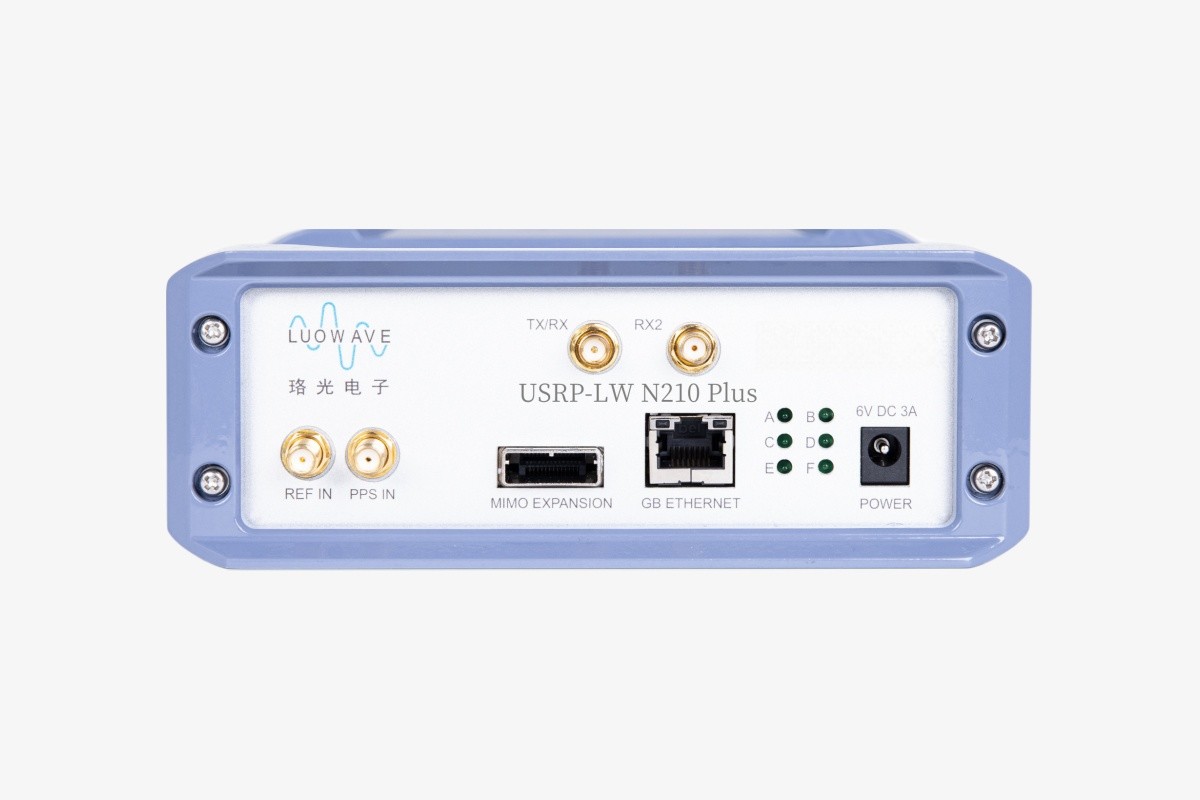

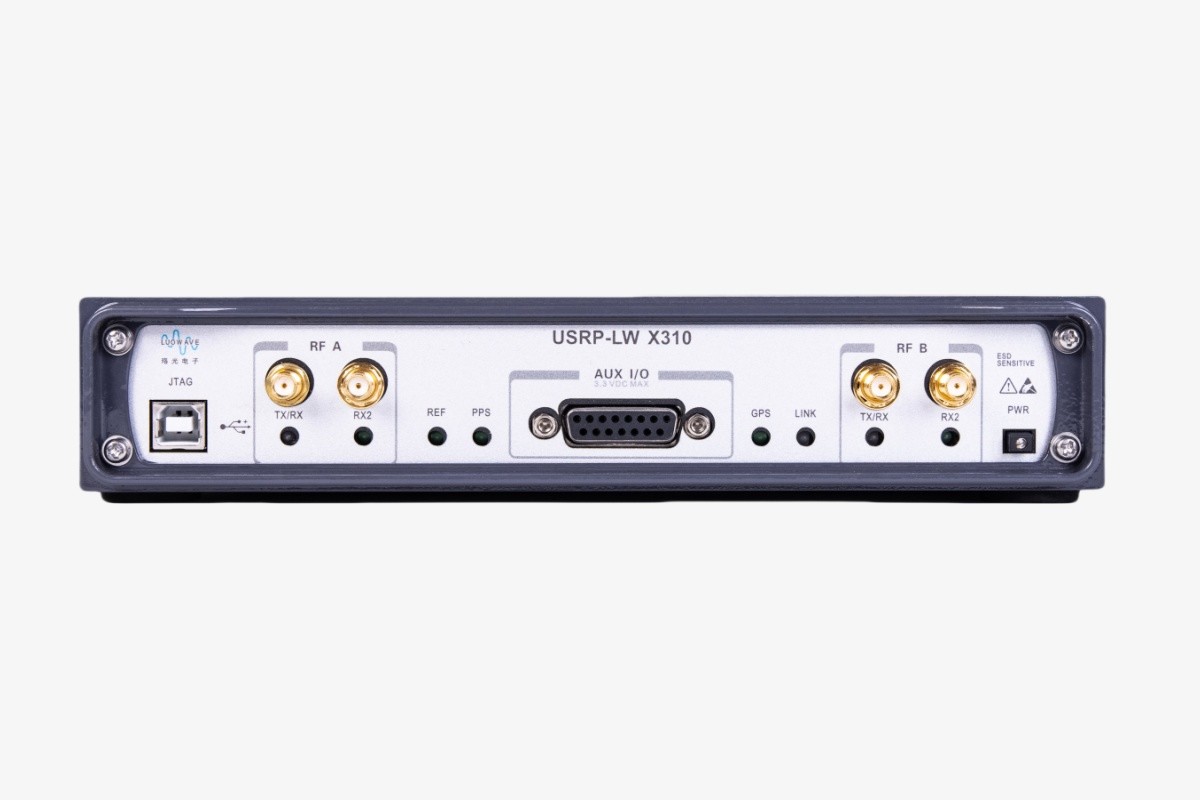

| P/N | USRP-LW X310 | USRP-LW N321 | USRP-LW N310 | USRP-LW N210 | USRP-LW E310 | USRP-LW B210 | USRP-LW B205 (Module) | USRP-LW B205 (Board) |
| Picture |
|
|
|
|
|
|
|
|
| Frequency Range | DC-6GHz | 3MHz-6GHz | 10MHz-6GHz | DC-6GHz | 70MHz-6GHz | |||
| RF Daughterboard | Support two Daughterboards | Built-in two Daughterboards (non-replaceable) | Built-in two Daughterboards (non-replaceable) | Support one Daughterboards | Unsupported | |||
| Max. Bandwidth | 160MHz each | 200MHz each | 100MHz each | 8-bit width:80MHz each 16-bit width:25MHz each | 56MHz each | |||
| Channels NO. | 2T2R | 2T2R | 4T4R | 1T1R | 2T2R | 2T2R | 1T1R | 1T1R |
| ADC/DAC | ADCs: ADS62P48 DACs: AD9146 | ADCs:AD9695B DACs:DAC37J82 | AD9371
| ADCs:ADS62P42
| AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s | AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s | ||
| FPGA Model | Xilinx Kintex-7 XC7K410T | Xilinx Zynq-7100 SoC FPGA | Xilinx Zynq-7100 SoC FPGA | Xilinx Spartan XC3SD3400A | Xilinx Zynq 7020 SoC FPGA | Xilinx Spartan 6 XC6SLX150 | Xilinx XC7AT200 | Xilinx Artix 7 |
| Data Interface | GigE Port, 10GbE Port, PCIE x4 | GigE Port, 10GbE Port, QSFP(2*10G) ,A-USB, micro-US | GigE Port, 10GbE Port, A-USB,micro USB | Gigabit Ethernet Port | Ethernet Port, USB2.0 | USB3.0 | ||
| Size (mm) | 290*225*45 | 380*220*45 | 425*220*45 | 225*165*62 | 133*68*26 | 179*127*48 | 107*65*20 | 104*57 |
| Unit Price | 9999 | 23999 | 17999 | 3699 | 5999 | 2199 | 2199 | 599 |
