Ettus USRP X310 Compatible | Luowave High Performance SDR USRP X Series USRP-LW X310, 2T2R, RF DC-6GHz, 160 MHz BW, USRP Software Defined Radio Device

The USRP-LW X310 is an advanced software-defined radio (SDR) system designed for cutting-edge wireless communication research. It features a Xilinx Kintex-7 410T FPGA as its central processing unit, enabling high-speed signal processing and seamless integration with RF components, memory modules, and host interfaces.

Key functionalities include digital down-conversion (DDC), digital up-conversion (DUC), and precision frequency adjustment, all supported by the UHD software framework. Engineers can leverage the FPGA's powerful processing resources along with the RFNoC (RF Network-on-Chip) toolkit to develop specialized DSP solutions for diverse wireless applications.

Features

Two wide-bandwidth RF daughterboard slots
Daughterboard selection covers DC to 6 GHz and 160 MHz BW each
Xilinx Kintex-7 XC7K410T FPGA for digital signal processing
14 bit 200 MS/s ADC, 16 bit 800 MS/s DAC
PCIe, dual 10G, dual 1G high-speed interfaces
Half-wide 1U form factor for desktop or rack mount usage

Supported Development Tools

GNU Radio
Matlab
LabView
UHD

Specifications

DC Voltage Input	12V	Single-sideband Mirroring/LO Rejection (With Paired With UBX-LW 160)	-35/50dBc
Power Consumption	45W	1GHz@10KHz Phase Noise	-108 dBc/Hz
ADC Sampling Rate (Max)	200 MSps	3.6GHz@10KHz Phase Noise	-102 dBc/Hz
ADC Resolution	14 bits	1GHz Output Power	20dBm
DAC Sampling Rate	800 MSps	2.4GHz Output Power	20dBm
DAC Resolution	16 bits	5.8GHz Output Power	7dBm
Maximum Transfer	200 MSps	IIP3	0dB
Rate With Host (16b)	200 MSps	IIP3	0dB
Local Oscillator Accuracy	2.5ppm	Noise Figure	8dB
Unlocked GPSDO Accuracy	20ppb	Weight	2.5Kg
Size	2922.54.5 CM

Documentations

Highlights

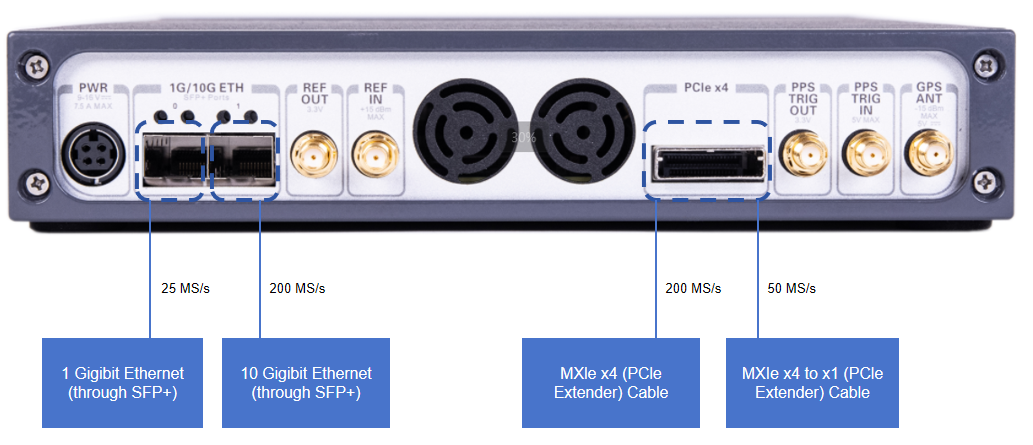

Multiple High-speed Interface Design

The USRP-LW X310 offers a variety of high-speed interfaces for selection. Depending on different application scenarios, such as those requiring expanded bandwidth and low latency, or multi-node processing, etc., it provides diverse interface options.

Ettus USRP X310 Compatible | Luowave High Performance SDR USRP X Series USRP-LW X310, 2T2R, RF DC-6GHz, 160 MHz BW, USRP Software Defined Radio Device

User-Programmable High performance FPGA (XC7K410T)

The Kintex 7-410T FPGA offers significant parametric advantages, delivering substantial value to its performance. Firstly, it features 406,720 logic cells and 1,600 DSP slices, providing robust signal processing capabilities to efficiently handle complex communication algorithms (such as OFDM and MIMO), making it suitable for high-bandwidth applications. Secondly, its 16 high-speed transceivers at 12.5 Gb/s support multi-channel, high-throughput data transmission, meeting real-time signal processing demands.

Packing List

Ettus USRP X310 Compatible | Luowave High Performance SDR USRP X Series USRP-LW X310, 2T2R, RF DC-6GHz, 160 MHz BW, USRP Software Defined Radio Device

USRP SDR Comparison

P/N	USRP-LW X310	USRP-LW N321	USRP-LW N310	USRP-LW N210	USRP-LW E310	USRP-LW B210	USRP-LW B205 (Module)	USRP-LW B205 (Board)
Frequency Range	DC-6GHz	3MHz-6GHz	10MHz-6GHz	DC-6GHz	70MHz-6GHz
RF Daughterboard	Support two Daughterboards	Built-in two Daughterboards (non-replaceable)	Built-in two Daughterboards (non-replaceable)	Support one Daughterboards	Unsupported
Max. Bandwidth	160MHz each	200MHz each	100MHz each	8-bit width:80MHz 16-bit width:25MHz	56MHz each
Channels NO.	2T2R	2T2R	4T4R	1T1R	2T2R	2T2R	1T1R	1T1R
ADC/DAC	ADCs: ADS62P48 14-bit, configurable sampling rate: 184.32, 200 MS/s DACs: AD9146 16-bit, maximum sampling rate of 800 MS/s	ADCs:AD9695B 14-bit, configurable sampling rates: 200, 245.76 and 250 MS/s DACs:DAC37J82 16-bit, configurable sampling rate: 200, 245.76 and 250 MS/s	AD9371 ADCs: 16-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s DACs: 14-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s	ADCs:ADS62P42 14-bit 100MS/s DACs:AD9777 16-bit 400MS/s	AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s		AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s
FPGA Model	Xilinx Kintex-7 XC7K410T	Xilinx Zynq-7100 SoC FPGA	Xilinx Zynq-7100 SoC FPGA	Xilinx Spartan XC3SD3400A	Xilinx Zynq 7020 SoC FPGA	Xilinx Spartan 6 XC6SLX150	Xilinx XC7AT200	Xilinx Artix 7
Data Interface	GigE Port, 10GbE Port, PCIE x4	GigE Port, 10GbE Port, QSFP(2*10G) ,A-USB, micro-US	GigE Port, 10GbE Port, A-USB,micro USB	Gigabit Ethernet Port	Ethernet Port, USB2.0	USB3.0
Size (mm)	29022545	38022045	42522045	22516562	1336826	17912748	1076520	104*57
Unit Price	9999	23999	17999	3699	5999	2199	2199	599

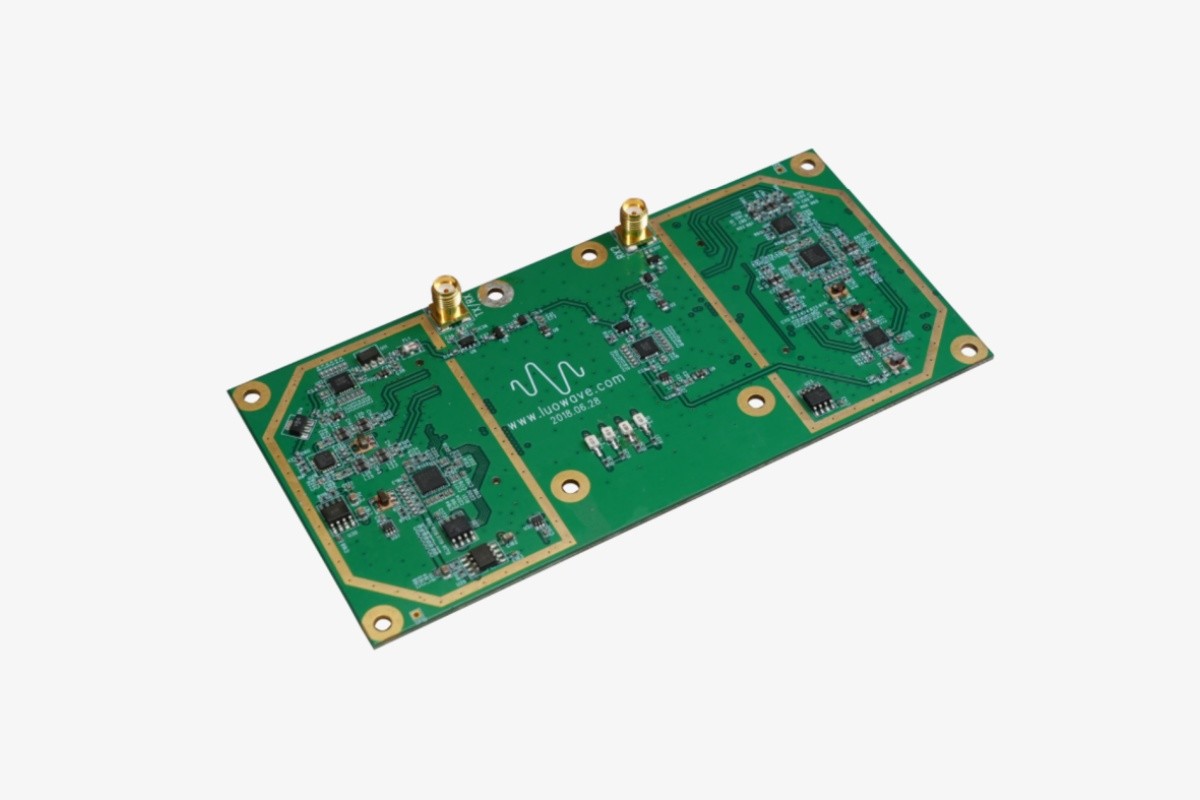

Compatible RF Daughterboard

P/N	Description	Picture
LFRX/LFTX-LW	0-30MHz Frequency Range, 30MHz BW
WBX-LW 40/120	50MHz-2.2 GHz Frequency Range, 40MHz/120MHz BW
SBX-LW 40/120	400 MHz - 4.4GHz Frequency Range, 40MHz/120MHz BW
UBX-LW 40/60	10 MHz - 6 GHz Frequency Range, 40MHz/160MHz BW

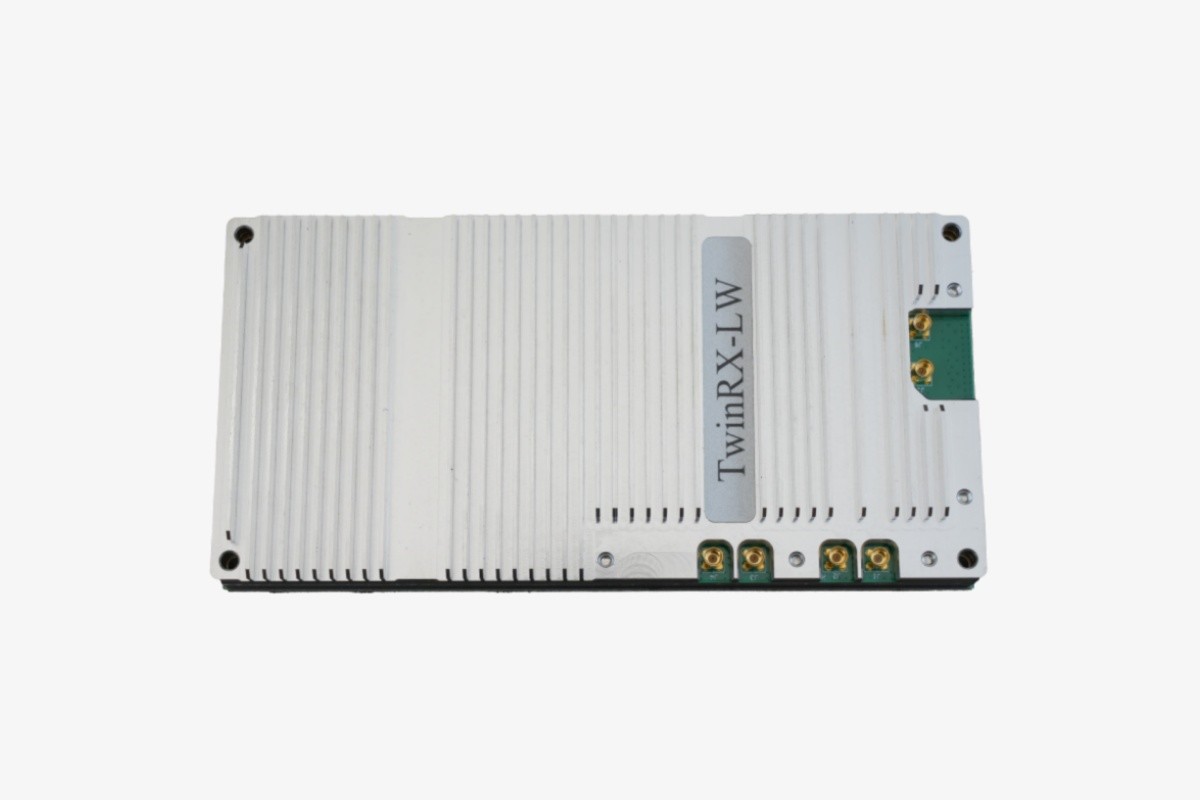

TwinRX-LW	10MHz-6GHz Frequency Range, 80MHz BW
